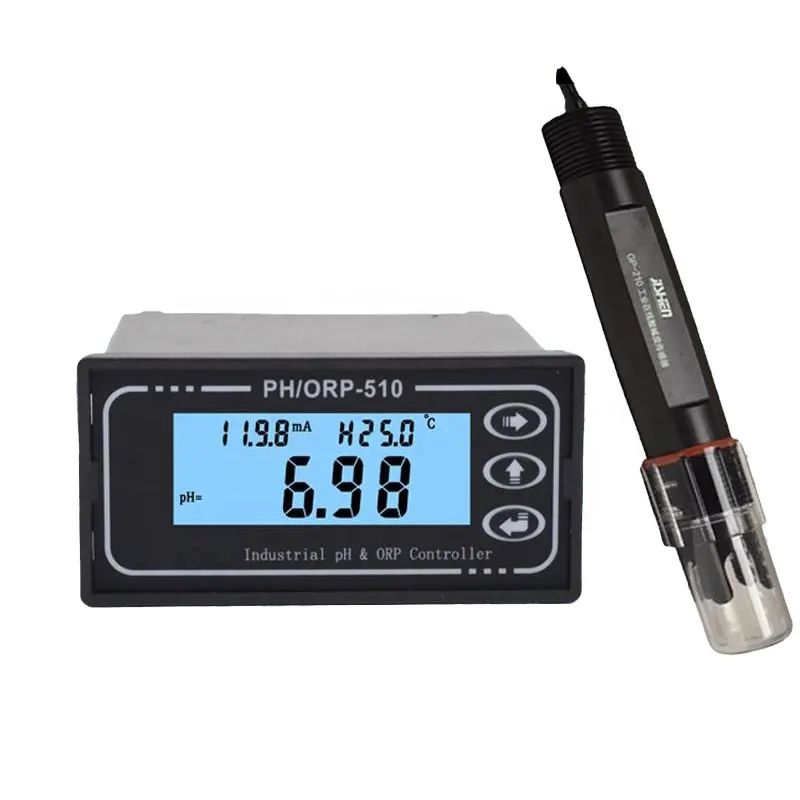

PH/ORP-510 pH/Redox Potential Transmitter Controller is a general-purpose, cost-effective online monitoring instrument, which can be matched with a variety of specifications of two or three composite PH electrodes or ORP electrodes, the whole machine has the characteristics of high measurement accuracy, anti-interference, easy installation and simple operation.
• Large LCD display, which can display multiple parameters on the same screen;
• PH supports dual-mode three-point calibration, in line with international standards, 4.00 /6.86 /9.18 or 4.01 /7.00 /10.00;
• PH supports offline calibration and online calibration;
• Support manual correction of measured values; (Manual compensation via PH0 or ORP0);
• 4~20mA output current, support instrument/transmitter dual mode, meet the interface of all (4~20)mA receiving units;
• Dual relay output control, and delay control, to meet the pH or ORP range control and adjustment, can be easily connected with the dosing pump.
Model: pH/ORP-510
Name: pH/ORP-510 pH/ORP meter
Measuring range: pH:0~14 pH; ORP: -2000mV~2000mV; Temperature:0.0~50.0℃(NTC10K);
Resolution: pH:0.01; ORP: 1mV; Temperature: 0.1℃;
Accuracy: pH:0.1; ORP: ≤±5mV (electronic unit); Temperature: ≤±0.5℃
Support buffer solution: pH: 4.00/6.86/9.18 or 4.01/7.00/10.00;
Medium temperature compensation range: 0~100℃(25°C as the compensation standard) can choose manual and automatic temperature compensation
Singal Output: 4-20mA or RS485;
Control Output: High/Low limit dual relay control;
Power Supply: AC 220V or AC 110V or DC24V;
Working Condition: Ambient temp:0～50℃, Relative humidity≤85%;
Calibration Method: 3-point calibration.
Meter Sizes: 48×96×100mm(H×W×L)
Hole Size: 45×92mm(H×W);
Installation Mode: Embeded.
